Malware Traffic Analysis Report

🛡 Case Overview

A packet capture file (2021-09-14.pcap) containing 3,679 packets was analyzed following reports that an endpoint device may have downloaded malware. The objective of this analysis was to identify suspicious network activity and extract potential Indicators of Compromise (IOCs).

🛠 Tools Used

  • Kali Linux
  • tcpdump
  • wireshark
  • WHOIS lookup
  • VirusTotal

Step 1 — Opening the Capture File

tcpdump -r 2021-09-14.pcap

To determine the size of the capture: tcpdump -r 2021-09-14.pcap –count

Result: The capture contained 3,679 packets.

Step 2 — Filtering for Web Traffic

tcpdump -r 2021-09-14.pcap -A tcp port 80 egrep “GET POST”

Step 3 — Suspicious HTTP Request Identified

  • Source IP: 10.0.0.168
  • Destination IP: 103.232.55.148

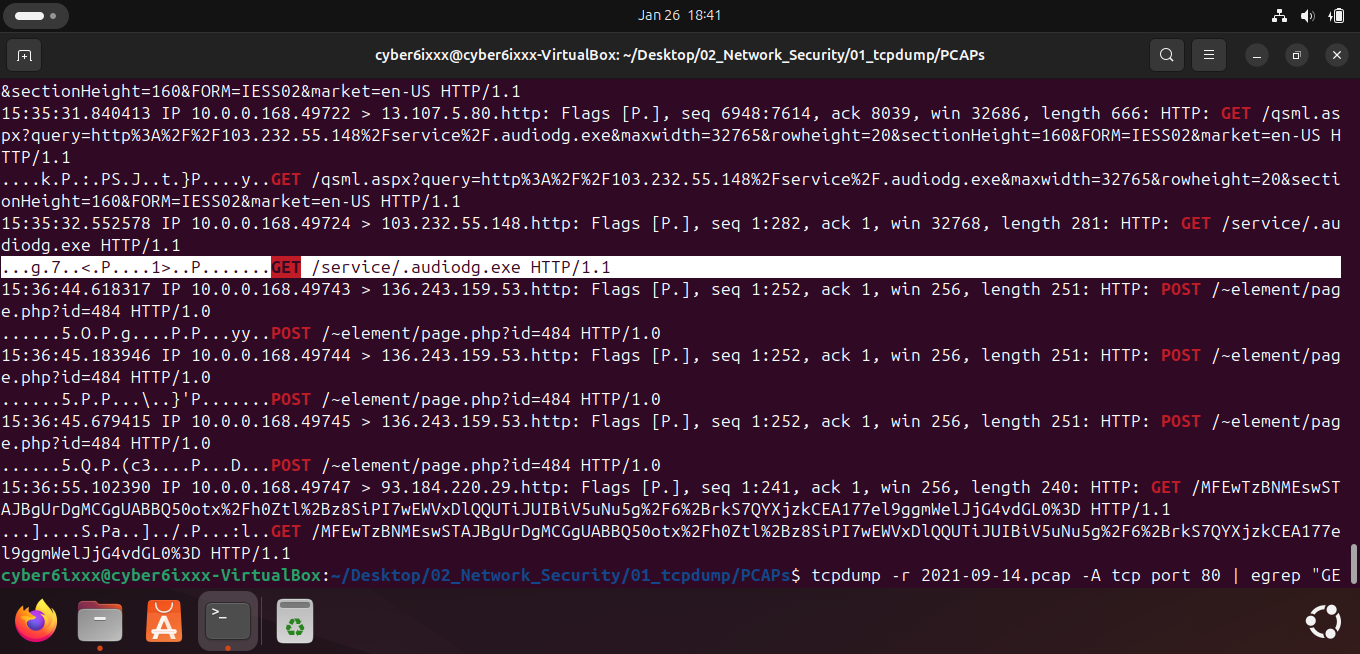

Suspicious HTTP GET Request

Step 4 — OSINT Investigation

The destination IP address was investigated:

  • WHOIS lookup indicates infrastructure located in Vietnam

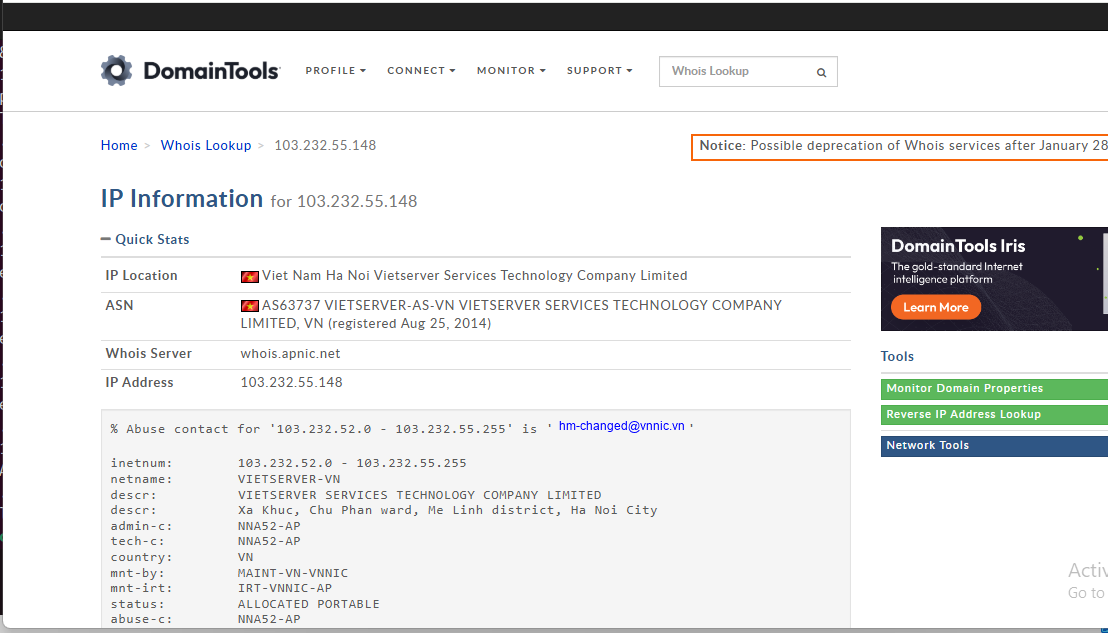

WHOIS Domain Lookup

  • VirusTotal flagged the IP as suspicious

VirusTotal IP Reputation Check

Step 5 — File Download Observed

The endpoint attempted to download: .audiodg.exe

This is concerning due to the executable format and suspicious naming.

Step 6 - Safely Download and Investigate Malicious File

The suspicious executable was safely extracted using wireshark and subjected to static analysis. File hashing and string inspection were performed without execution to avoid system compromise.

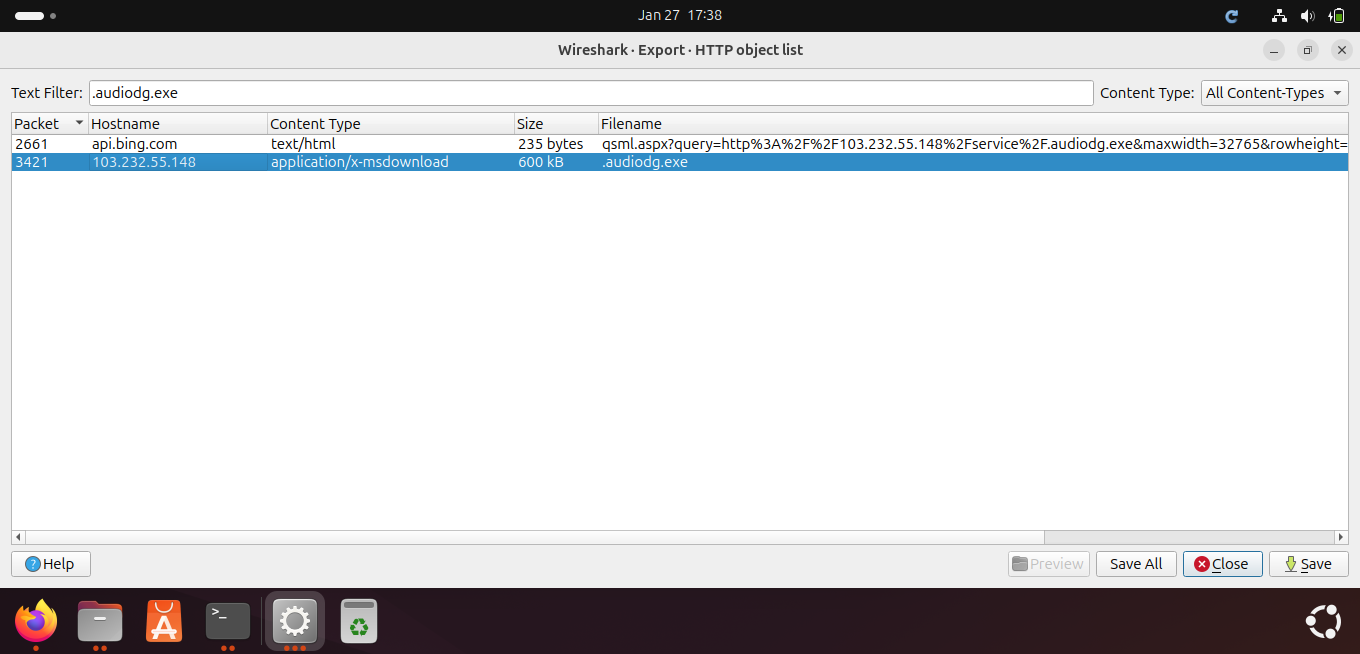

Malware File Download Evidence

Hash Generation

The file’s hash was calculated: sha256sum .audiodg.exe && sha1sum .audiodg.exe && md5sum audiodg.exe

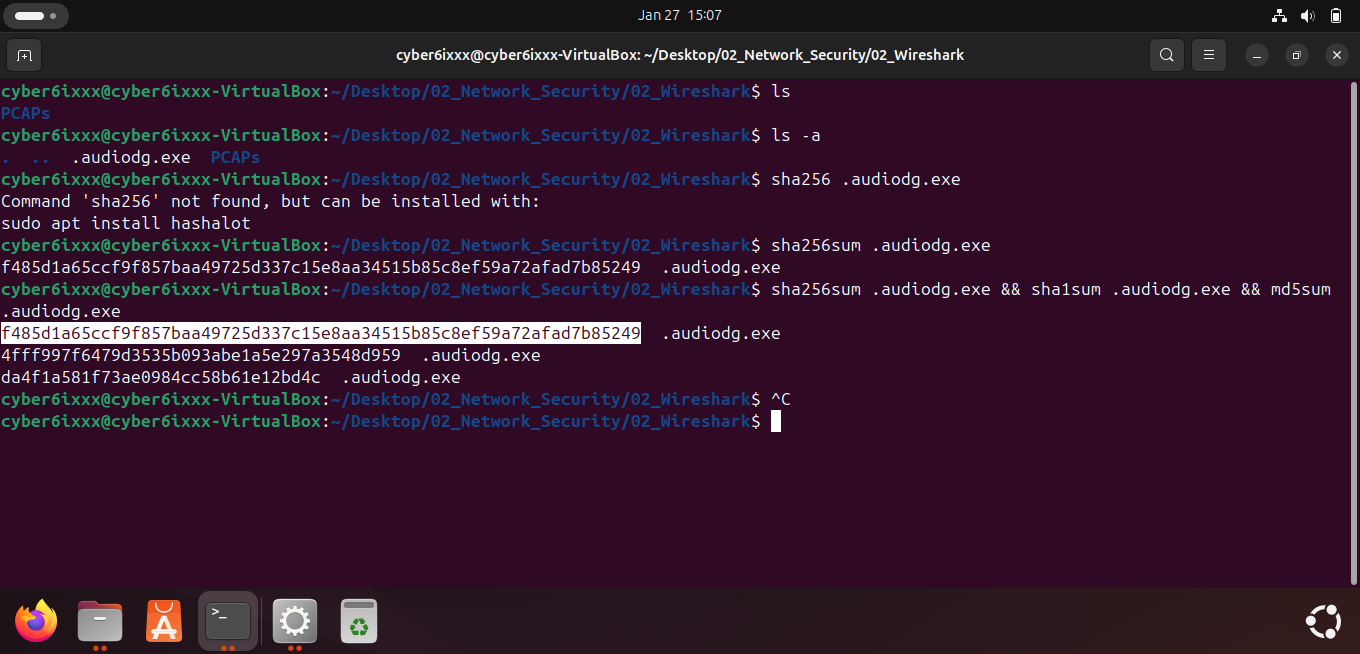

SHA256 Hash Output

Threat Intelligence Verification

The SHA256 hash was searched on VirusTotal, where the file was flagged as malicious by 40 security vendors, identifying it as a Trojan.

VirusTotal Malware Detection

This confirms that the observed HTTP traffic resulted in the download of verified malware.

🚨 Indicators of Compromise (IOCs)

Type Value
Malicious IP 103.232.55.148
Suspicious File .audiodg.exe
Affected Host 10.0.0.168
.audiodg.exe Hash f485d1a65ccf9f857baa49725d337c15e8aa34515b85c8ef59a72afad7b85249

🔍 Conclusion

This investigation confirms a successful malware download from a malicious external server. Network evidence, OSINT analysis, and malware hash verification collectively validate the presence of a Trojan infection, supporting escalation for containment and incident response.
