Splunk Scheduled Task Persistence Detection Lab

Detecting Windows Scheduled Task Persistence Using Event ID 4698

Overview

This project documents a hands-on SOC detection lab focused on identifying Windows scheduled task persistence using Splunk and Windows Security logs.

The objective of the lab was to understand how attackers abuse scheduled tasks to maintain persistence, automate malware execution, and survive system reboots after compromising a machine.

Using Splunk Enterprise and Windows telemetry, I investigated:

  • Scheduled task creation
  • Windows Event ID 4698
  • Persistence mechanisms
  • Task execution behavior
  • Suspicious scheduled task characteristics
  • Legitimate vs malicious scheduled tasks

This lab introduced another critical SOC analysis concept:

Scheduled Task Persistence

Scheduled tasks are commonly abused by attackers because they allow malicious payloads to automatically execute at specific times or intervals without requiring user interaction.

Lab Environment

Virtual Machines Used

Machine Purpose
Ubuntu VM Splunk Enterprise Server
Windows VM Endpoint telemetry source
Kali Linux VM Additional SOC lab environment

Technologies Used

Tool Purpose
Splunk Enterprise SIEM and log analysis
Windows Event Logs Security telemetry
Windows Scheduled Tasks Persistence mechanism
CMD Scheduled task creation
schtasks.exe Task scheduling utility

Understanding Scheduled Task Persistence

Attackers frequently abuse scheduled tasks because they:

  • Survive system reboots
  • Automate malicious execution
  • Blend into legitimate administrator activity
  • Are built directly into Windows
  • Can execute silently in the background

Scheduled task abuse is extremely common in:

  • Ransomware attacks
  • Remote Access Trojans (RATs)
  • Malware loaders
  • Phishing payloads
  • Persistence mechanisms
  • Privilege escalation activity

Because scheduled tasks are also heavily used by administrators and legitimate software, they can help attackers hide malicious activity within normal system operations.

LAB — Scheduled Task Persistence

Objective

The objective of this lab was to simulate attacker persistence through Windows scheduled tasks and investigate the resulting security event logs.

The following command was executed on the Windows VM:

schtasks /create /sc minute /mo 5 /tn Updater /tr notepad.exe

What This Command Does

This command creates a scheduled task named:

Updater

The task:

  • Executes every 5 minutes
  • Launches notepad.exe
  • Persists on the system until removed
  • Automatically re-runs based on the configured schedule

This generated:

Windows Event ID 4698

which records scheduled task creation activity.

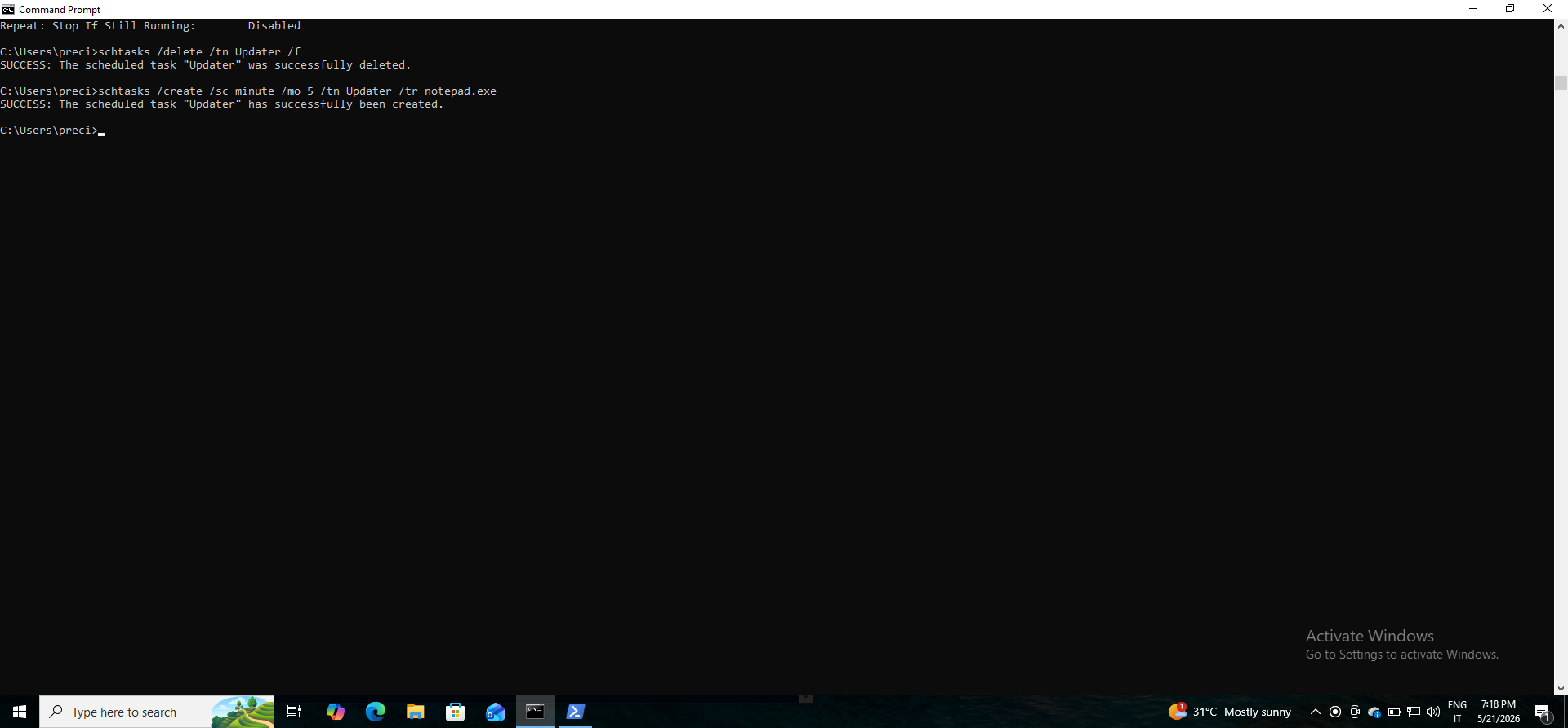

Screenshot 1 — Scheduled Task Creation Command

Scheduled Task Creation Command

Why Scheduled Tasks Are Dangerous

Scheduled tasks are dangerous because they can be used to maintain persistence on compromised systems.

Attackers use them to:

  • Automatically relaunch malware
  • Maintain long-term access
  • Execute payloads repeatedly
  • Re-establish command-and-control access
  • Trigger malicious activity without user interaction

Unlike one-time process execution, scheduled tasks continue running based on their configured schedule, making them highly effective persistence mechanisms.

Why Attackers Love Scheduled Tasks

Attackers frequently abuse scheduled tasks because they:

  • Are built into Windows
  • Blend with legitimate administrative activity
  • Require no additional malware framework
  • Can execute with elevated privileges
  • Can be configured to execute silently
  • Persist across reboots

Scheduled tasks are considered a common “Living Off The Land” technique because attackers abuse legitimate Windows functionality instead of dropping obvious malware.

Event ID 4698 Investigation

Purpose

Windows Event ID 4698 records scheduled task creation activity.

This event helps analysts identify:

  • New scheduled tasks
  • Persistence attempts
  • Suspicious task execution
  • Malware automation
  • Unauthorized task creation

SPL Query Used

index=wineventlog EventCode=4698

Investigation Findings

The investigation revealed:

  • Scheduled task creation activity
  • Task name visibility
  • Task configuration details
  • User responsible for task creation
  • Command configured for execution

Important fields analyzed included:

  • TaskName
  • TaskContent
  • SubjectUserName
  • Command
  • Author

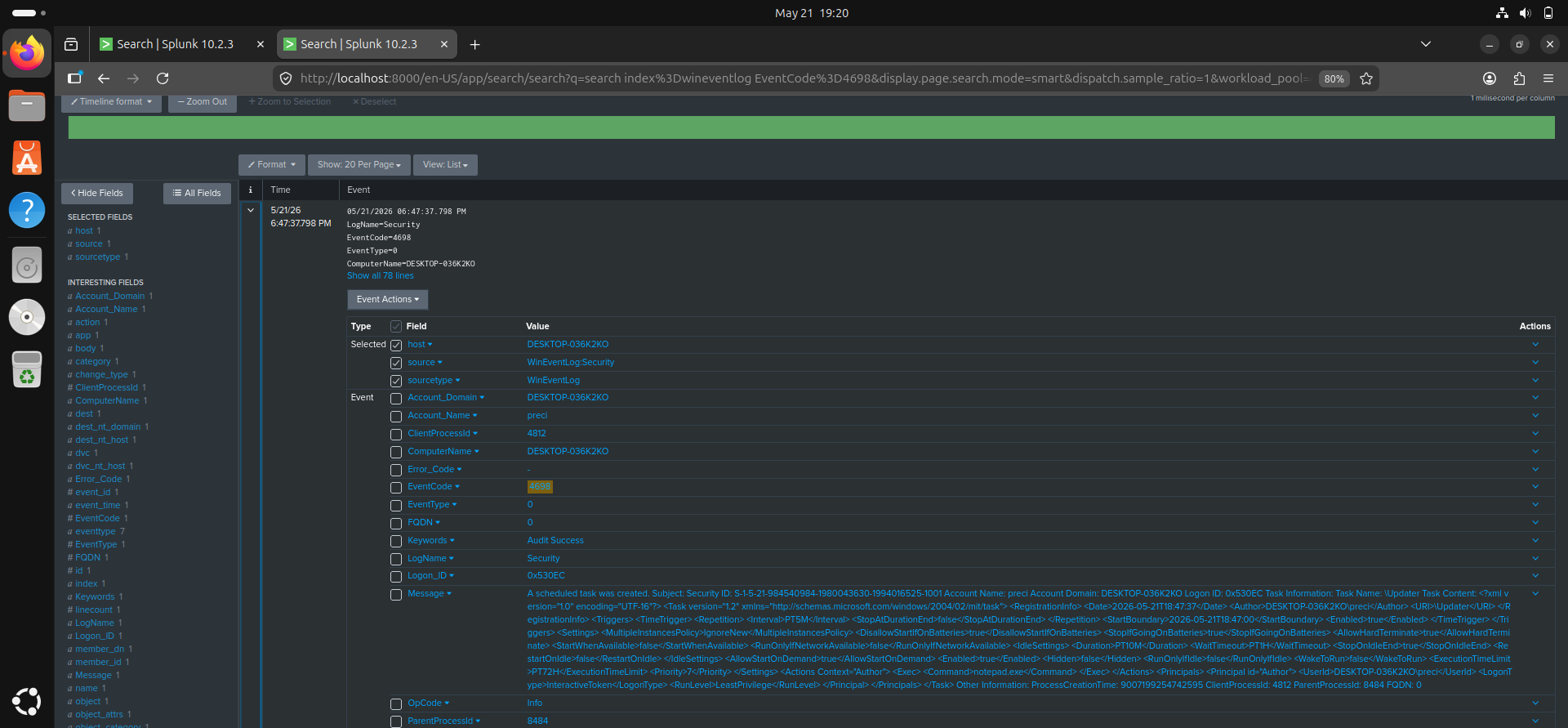

Screenshot 2 — Event ID 4698 Detection in Splunk

Event ID 4698 Detection in Splunk

Which Scheduled Tasks Increase Suspicion

Several characteristics increase the suspicion level of scheduled tasks.

Examples include:

  • Hidden PowerShell execution
  • Encoded PowerShell commands
  • Tasks launching scripting engines
  • Tasks executing from temporary folders
  • Tasks using suspicious file paths
  • Randomized or misleading task names
  • Tasks configured to run very frequently
  • Tasks executing external network payloads

Commands involving the following binaries are particularly concerning:

powershell.exe
cmd.exe
rundll32.exe
mshta.exe
wscript.exe
regsvr32.exe

These binaries are commonly abused in real-world attacks.

Legitimate vs Malicious Scheduled Tasks

Legitimate scheduled tasks are commonly created by:

  • System administrators
  • Backup software
  • Antivirus products
  • Update services
  • Monitoring tools
  • Cloud synchronization applications

Legitimate tasks usually:

  • Have recognizable names
  • Execute trusted binaries
  • Run from standard directories
  • Are signed by trusted vendors
  • Perform expected system functions

Malicious scheduled tasks often:

  • Use suspicious scripting engines
  • Execute hidden PowerShell
  • Run from temporary directories
  • Use obfuscated commands
  • Attempt outbound network communication
  • Mimic legitimate task names

Which Users Increase Severity

The severity of scheduled task creation increases when:

  • Non-administrative users create tasks
  • Unusual service accounts create tasks
  • Newly created accounts generate tasks
  • Tasks are created outside normal maintenance windows
  • Tasks appear on critical systems unexpectedly

A regular user account creating suspicious persistence tasks is often more concerning than an administrator performing routine maintenance.

How Defenders Reduce False Positives

Because scheduled tasks are widely used in enterprise environments, defenders reduce false positives by analyzing:

  • Known-good task baselines
  • Trusted software publishers
  • Expected administrative activity
  • Task naming conventions
  • File execution paths
  • Historical task behavior
  • Frequency of task creation
  • Parent process activity

SOC analysts often combine scheduled task detection with:

  • PowerShell monitoring
  • Network telemetry
  • Process creation logs
  • Endpoint detection alerts
  • Threat intelligence

to improve detection accuracy.

Skills and Knowledge Gained

Through this project, I gained practical experience in:

  • Windows persistence detection
  • Event ID 4698 analysis
  • Scheduled task monitoring
  • Splunk SPL searches
  • Threat hunting concepts
  • Persistence investigation
  • SOC investigation workflows
  • Detection tuning concepts

Detection Relevance

Scheduled task monitoring is highly important because persistence is a major attacker objective after initial compromise.

Monitoring task creation activity helps defenders identify:

  • Malware persistence
  • Unauthorized automation
  • Payload relaunch mechanisms
  • LOLBin abuse
  • Long-term attacker access

Scheduled task detection is a critical SOC analyst skill in modern enterprise environments.

Challenges Encountered

Some challenges encountered during the lab included:

  • Understanding scheduled task telemetry
  • Interpreting Event ID 4698 fields
  • Distinguishing legitimate vs suspicious tasks
  • Understanding persistence mechanisms
  • Evaluating task severity

Resolving these challenges improved my understanding of Windows persistence techniques and SOC detection workflows.

Future Improvements

Future improvements planned for this lab include:

  • Detecting malicious PowerShell scheduled tasks
  • Monitoring encoded commands
  • Correlating scheduled tasks with network activity
  • Investigating service creation attacks
  • Building persistence detection dashboards
  • Simulating full attack chains

Conclusion

This lab improved my understanding of how attackers abuse scheduled tasks to maintain persistence on Windows systems and how SOC analysts detect this activity using Splunk.

By analyzing Event ID 4698 logs and investigating task creation activity, I gained practical experience in:

  • Persistence detection
  • Scheduled task monitoring
  • Threat hunting concepts
  • Detection tuning
  • Security event analysis
  • SOC investigation workflows

This project strengthened my understanding of how persistence mechanisms are used in real-world attacks and how defenders identify suspicious scheduled task activity in enterprise environments.
