Beginner SOC Lab with Splunk — Windows Log Analysis and Authentication Monitoring

Overview

This project documents my hands-on learning journey with Splunk as I practice core Security Operations Center (SOC) workflows in a virtual lab environment.

The objective of this lab was to:

  • Install and configure Splunk Enterprise
  • Set up a small virtual SOC environment
  • Ingest and analyze logs
  • Practice Splunk Search Processing Language (SPL)
  • Investigate suspicious authentication activity
  • Understand how failed and successful logon events appear in Windows logs

This project was built using virtual machines and focuses on practical SOC analyst skills used in real-world monitoring and investigation.

Lab Environment

Virtual Machines Used

Machine Purpose
Ubuntu VM Splunk Server
Windows VM Log Generation Target
Kali Linux VM Simulated Attacker Machine

Network Configuration

All VMs were configured to communicate within the same virtual network using:

  • Adapter 1: NAT
  • Adapter 2: Host-Only Adapter

This allowed:

  • Internet access
  • Internal communication between VMs
  • Controlled SOC-style testing

Tools and Technologies

Tool Purpose
Splunk Enterprise SIEM and log analysis
Oracle VirtualBox / VMware Virtualization
Ubuntu Linux Splunk hosting
Windows Event log generation
Kali Linux Attack simulation
Sysmon Advanced Windows endpoint telemetry
Splunk Universal Forwarder Forwarding Windows logs to Splunk

Phase 1 — Installing and Configuring Splunk

I installed Splunk Enterprise on my Ubuntu virtual machine and configured access through the web interface.

Key setup tasks included:

  • Installing Splunk Enterprise
  • Starting the Splunk service
  • Accessing Splunk through the browser
  • Creating indexes
  • Uploading and monitoring log files

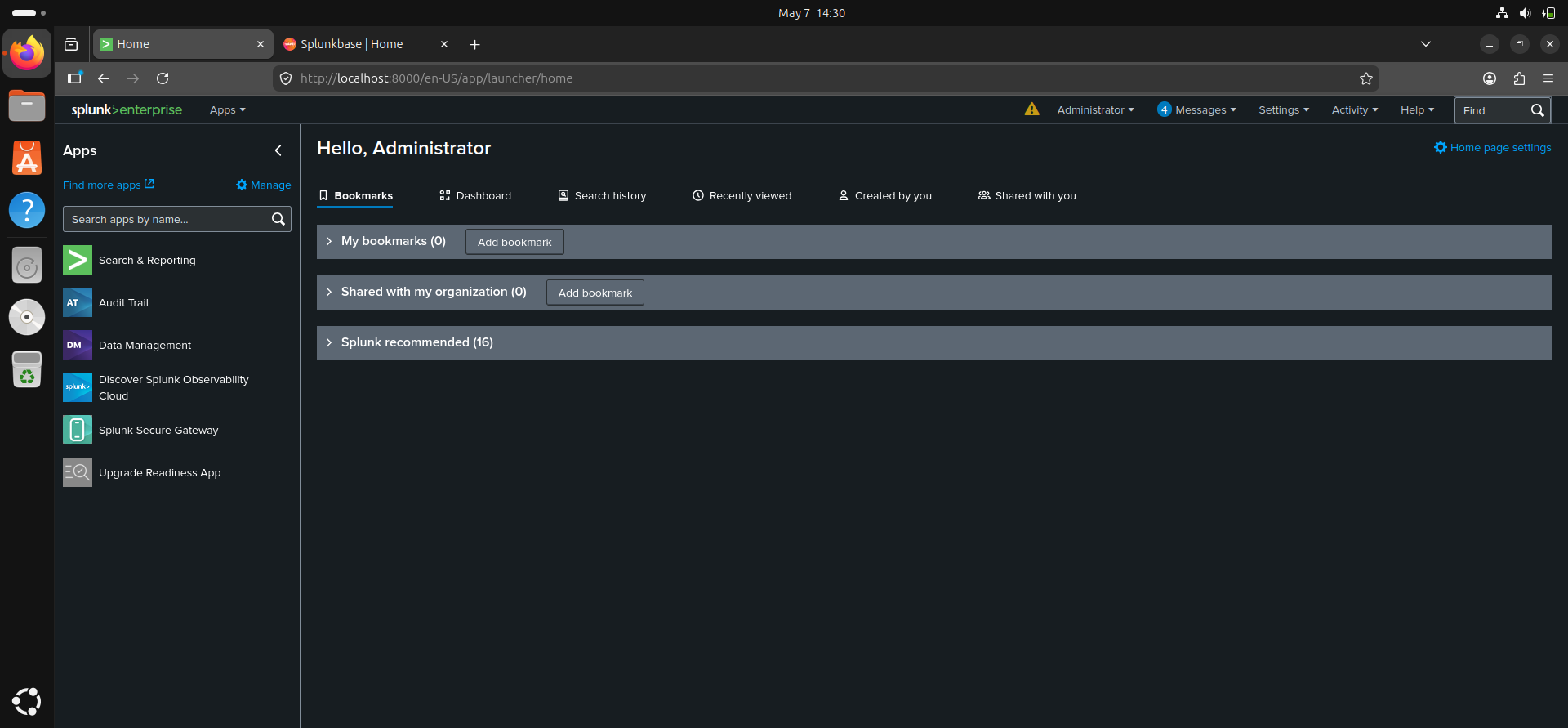

Splunk Home Dashboard

Phase 2 — Ingesting Logs into Splunk

To begin practicing log analysis, I ingested sample web logs and Windows event logs into Splunk.

This helped me understand:

  • Indexing
  • Source types
  • Time-based searching
  • Log parsing
  • Event searching

SPL Searches Practiced

index=*

index=* sourcetype=*

index=* | stats count by sourcetype

index=* | head 20

Skills Learned

  • Searching across indexes
  • Identifying source types
  • Filtering results
  • Understanding event structure
  • Navigating Splunk dashboards

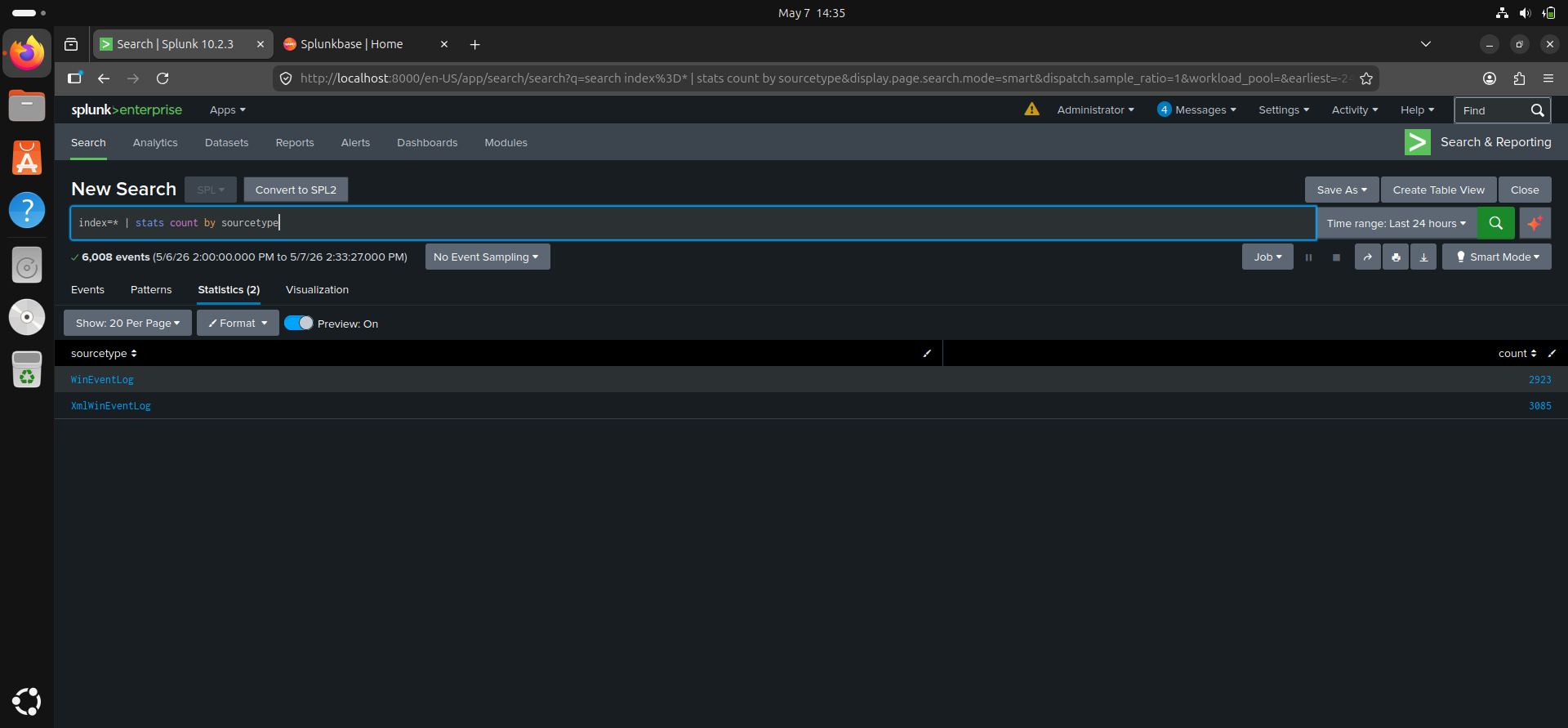

Basic SPL Search Results

Phase 3 — Windows Log Monitoring and Log Forwarding

To generate and collect Windows security telemetry, I configured:

  • Sysmon on the Windows VM
  • Splunk Universal Forwarder on the Windows VM
  • Log forwarding from Windows to the Splunk server hosted on Ubuntu

This allowed my Ubuntu-based Splunk instance to ingest:

  • Windows Security logs
  • Authentication events
  • System activity
  • Endpoint telemetry generated by Sysmon

The goal was to observe and analyze:

  • Failed logon attempts
  • Successful logons
  • Network logons
  • Source IP addresses
  • Workstation names
  • Windows Event IDs related to authentication activity

This setup introduced me to the type of centralized log collection and monitoring workflow commonly used in SOC environments.

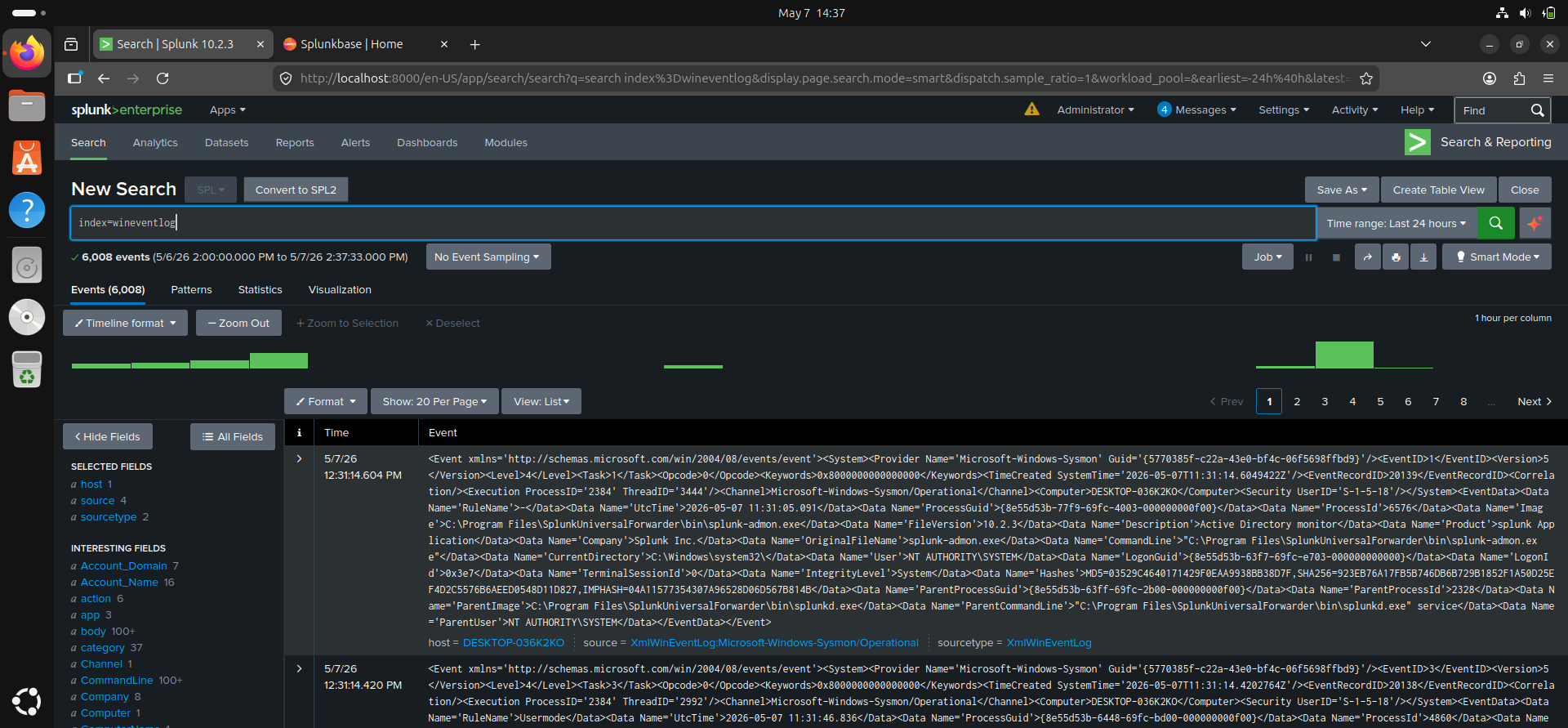

Windows Logs Successfully Forwarded to Splunk

Phase 4 — Detecting Suspicious Authentication Activity Using Windows Event Logs

One of the most important exercises in this lab involved identifying suspicious login behavior.

During testing, I generated:

  • Multiple failed login attempts
  • A successful login afterward
  • A network logon from the Kali Linux machine

The Windows logs showed:

  • Logon Type 3 (Network Logon)
  • Source IP address from the Kali machine
  • Workstation name identified as “kali”
  • Several failed attempts before success

This pattern is important because repeated failed logons followed by a successful authentication can indicate:

  • Password spraying
  • Brute-force activity
  • Unauthorized access attempts
  • Credential guessing

SPL Query Used

index=* EventCode=4625 OR EventCode=4624

What I Observed

  • Event ID 4625 represented failed logon attempts
  • Event ID 4624 represented successful logons
  • Logon Type 3 indicated a network authentication
  • The source IP identified the originating system

This exercise helped me understand how SOC analysts correlate events to identify suspicious behavior.

Windows Event ID 4625 Failed Logons

Windows Event ID 4624 Successful Network Logon

Key Concepts Learned

Through this project, I gained practical exposure to:

  • SIEM fundamentals
  • Splunk search and analysis
  • Windows authentication logs
  • Event correlation
  • Log investigation workflows
  • Identifying suspicious authentication patterns
  • Building and managing a virtual SOC lab

Challenges Encountered

Some of the challenges I encountered included:

  • Configuring VM networking correctly
  • Ensuring all VMs communicated on the same subnet
  • Learning Splunk SPL syntax
  • Understanding Windows Event IDs
  • Troubleshooting log ingestion issues

Resolving these issues improved my troubleshooting and analytical skills.

Future Improvements

Next steps for this lab include:

  • Creating custom correlation searches
  • Building authentication anomaly detections
  • Developing Splunk dashboards for failed/successful logons
  • Simulating additional attack scenarios
  • Expanding Sysmon monitoring coverage
  • Creating custom dashboards
  • Building detection rules and alerts
  • Simulating brute-force attacks in a controlled environment
  • Integrating additional log sources

Conclusion

This project helped me move beyond theory into practical SOC analysis.

By building a small Splunk lab environment and analyzing authentication logs, I developed foundational SIEM skills that are relevant to entry-level cybersecurity and SOC analyst roles.

The experience also improved my understanding of:

  • Log analysis
  • Security monitoring
  • Authentication investigations
  • Event correlation
  • Basic threat detection workflows

This is an ongoing learning project, and I plan to continue expanding the lab with additional data sources, detections, and attack simulations.

```
