Splunk Process Tree Detection Lab — Parent and Child Process Investigation

Overview

This lab focuses on process creation monitoring and process tree analysis using Splunk and Windows Security Event Logs.

The objective of the lab was to understand how parent-child process relationships appear in Windows telemetry and how SOC analysts reconstruct execution chains during investigations.

Using Windows Event ID 4688, I investigated:

  • Process creation events
  • Parent-child process relationships
  • PowerShell execution chains
  • Hidden PowerShell execution
  • Suspicious process spawning behavior

This lab was performed using a Windows virtual machine forwarding logs into Splunk Enterprise hosted on Ubuntu.

Lab Environment

Virtual Machines Used

Machine Purpose
Ubuntu VM Splunk Enterprise Server
Windows VM Event generation and telemetry source
Kali Linux VM Additional SOC lab environment

Technologies Used

Tool Purpose
Splunk Enterprise SIEM and log analysis
Sysmon Endpoint telemetry
Splunk Universal Forwarder Windows log forwarding
Windows Event Logs Process creation telemetry
PowerShell Process execution testing
CMD Parent process simulation

Understanding Event ID 4688

Windows Event ID 4688 represents:

A New Process Has Been Created

This event is extremely important in SOC investigations because it allows analysts to:

  • Track process execution
  • Identify parent-child relationships
  • Detect suspicious process chains
  • Investigate malware execution
  • Reconstruct attacker activity

Process creation telemetry is one of the most valuable data sources in threat detection.

LAB 1 — CMD → PowerShell → Notepad Execution Chain

Objective

The goal of this lab was to observe how process trees appear in Windows logs when one process spawns another.

I executed:

powershell -Command "notepad.exe"

from a CMD session.

This generated a process chain:

cmd.exe
   └── powershell.exe
          └── notepad.exe

SPL Query Used

index=wineventlog EventCode=4688 notepad.exe
| table _time Account_Name Creator_Process_Name New_Process_Name Process_Command_Line
| sort - _time

Investigation Findings

Using Splunk, I analyzed:

  • Parent process names
  • Child process names
  • Process command lines
  • Execution timestamps
  • Process creation relationships

The investigation revealed:

Parent Process

cmd.exe

Child Process

powershell.exe

followed by:

notepad.exe

This demonstrated how attackers and administrators can chain processes together during execution.

Why Process Trees Matter

Attackers rarely execute only a single isolated process.

Instead, malicious activity often appears as process chains such as:

Office Application
   └── powershell.exe
          └── cmd.exe
                 └── rundll32.exe
                        └── malware payload

SOC analysts reconstruct attacks by analyzing parent-child process relationships.

This helps identify:

  • Malicious PowerShell usage
  • LOLBins (Living Off The Land Binaries)
  • Script-based execution
  • Malware launch chains
  • Privilege escalation attempts

Screenshot 1 — Event ID 4688 Process Creation Events

Notepad Spawning 4688 Event Lab

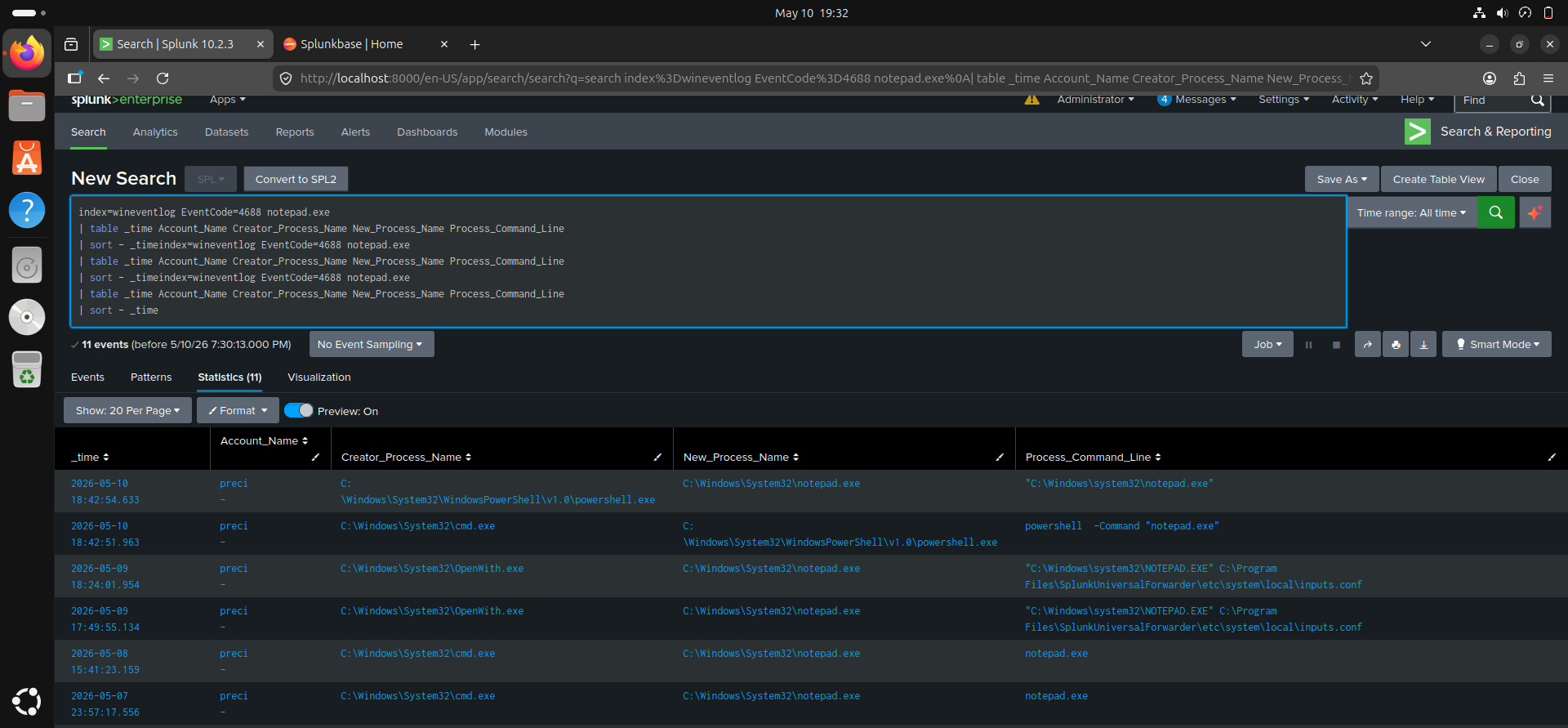

Screenshot 2 — CMD → PowerShell → Notepad Process Chain

LAB 1 EventCode 4688 Detection

LAB 2 — Hidden PowerShell Execution Chain

Objective

The purpose of this lab was to investigate hidden PowerShell execution and identify suspicious process behavior.

I executed:

powershell -w hidden -Command "cmd /c notepad.exe"

This command launches PowerShell with a hidden window and spawns CMD, which then launches Notepad.

Investigation Questions

During analysis, I investigated:

  • Which process executed first?
  • Which process became hidden?
  • Which process remained visible?
  • Which process appeared suspicious?
  • How the execution chain changed compared to Lab 1

SPL Query Used

index=wineventlog EventCode=4688
| table _time Account_Name Creator_Process_Name New_Process_Name Process_Command_Line
| sort - _time

Investigation Findings

The process execution chain appeared similar to:

powershell.exe (hidden)
      └── cmd.exe
              └── notepad.exe

Key observations:

  • PowerShell executed with hidden window arguments
  • CMD was spawned from PowerShell
  • Notepad was launched through CMD
  • Hidden PowerShell execution can indicate suspicious activity

This behavior is important because attackers frequently use hidden PowerShell execution to avoid user visibility.

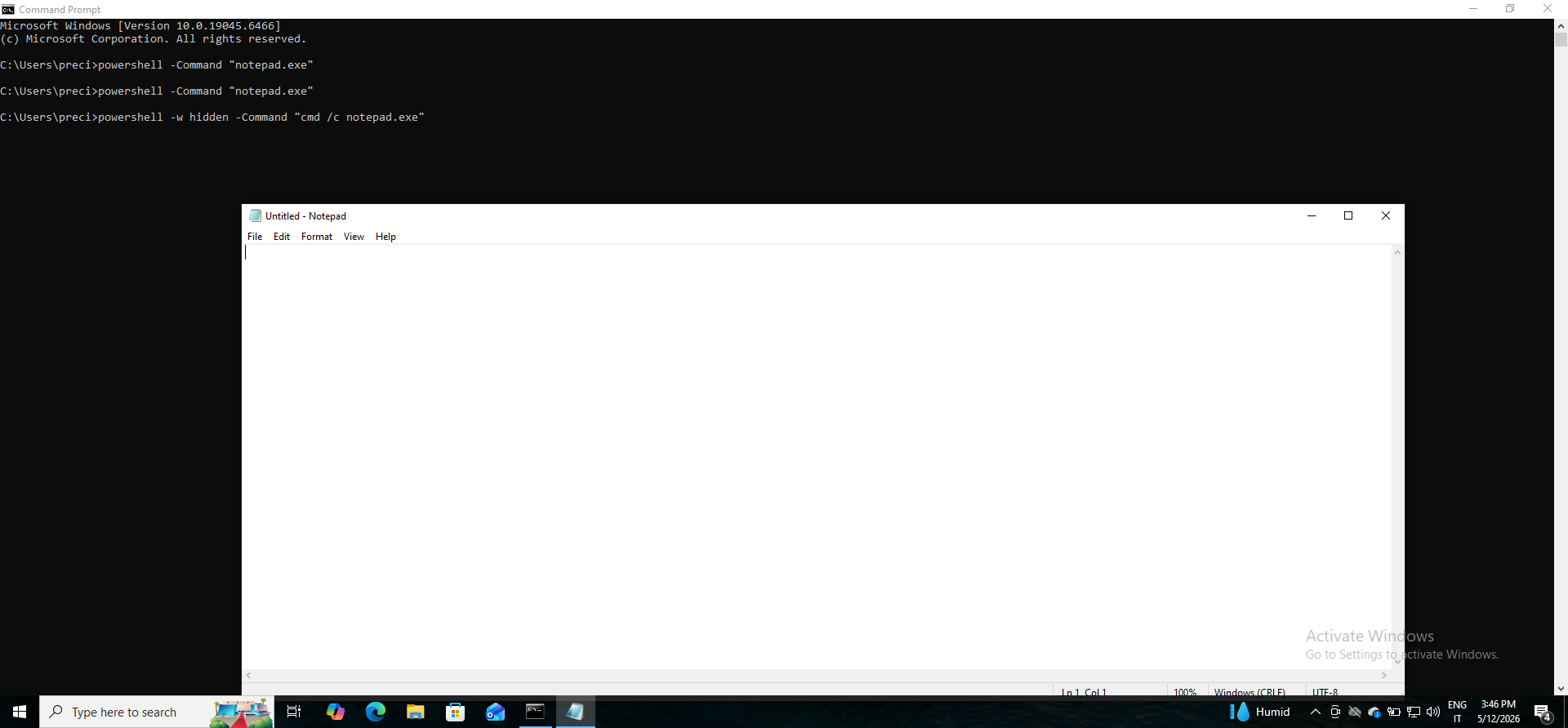

Screenshot 3 — Hidden PowerShell Execution

Notepad Spawning 4688 Event Lab

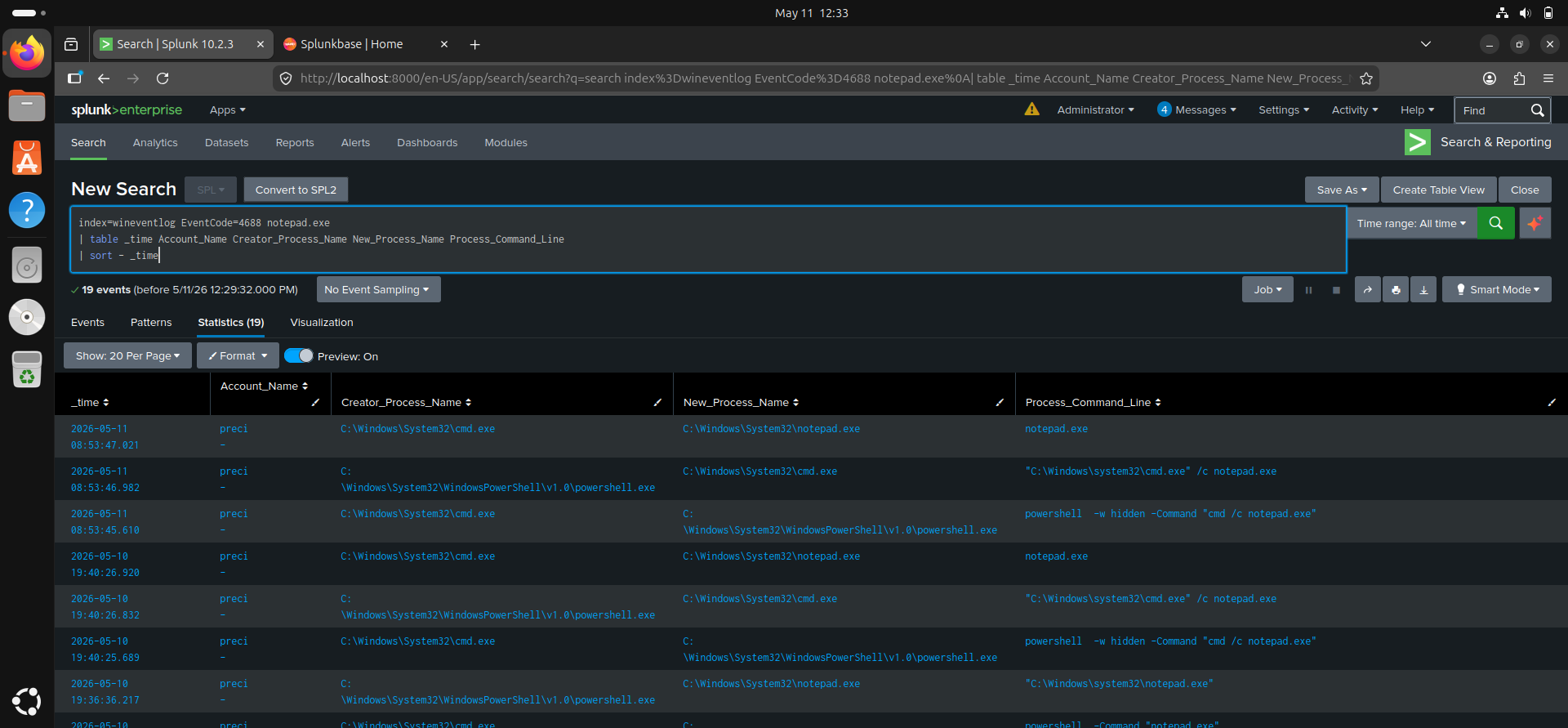

Screenshot 4 — Hidden Execution Process Chain Investigation

LAB 2 EventCode 4688 Detection

Skills and Concepts Learned

Through this lab, I gained practical exposure to:

  • Process creation monitoring
  • Windows Event ID 4688 analysis
  • Parent-child process relationships
  • PowerShell telemetry analysis
  • Hidden process execution
  • Process tree reconstruction
  • Threat hunting concepts
  • Basic detection engineering workflows

Detection Relevance

These techniques are highly relevant in modern SOC environments because attackers commonly abuse:

  • PowerShell
  • CMD
  • rundll32.exe
  • mshta.exe
  • wscript.exe
  • regsvr32.exe

Monitoring abnormal process chains is a critical blue-team detection strategy.

Challenges Encountered

Some challenges encountered during the lab included:

  • Understanding Windows process hierarchy
  • Interpreting Event ID 4688 fields
  • Correlating parent and child processes
  • Understanding PowerShell execution flags
  • Distinguishing normal vs suspicious activity

Resolving these challenges improved my investigative and analytical skills.

Future Improvements

Future improvements planned for this lab include:

  • Creating Splunk dashboards for process monitoring
  • Developing custom detections for suspicious PowerShell activity
  • Detecting encoded PowerShell commands
  • Simulating additional attacker execution chains
  • Investigating LOLBins in Windows
  • Building process anomaly alerts

Conclusion

This lab improved my understanding of how SOC analysts investigate process execution activity using Splunk.

By analyzing Windows Event ID 4688 logs and reconstructing process trees, I gained practical experience in:

  • Process monitoring
  • PowerShell investigation
  • Parent-child process analysis
  • Threat hunting concepts
  • Suspicious execution detection

This project strengthened my ability to interpret Windows telemetry and understand attacker behavior patterns commonly investigated in SOC environments.
